BOYA BY-M1 Omni Directional Lavalier Microphone

BOYA M1 Microphone review

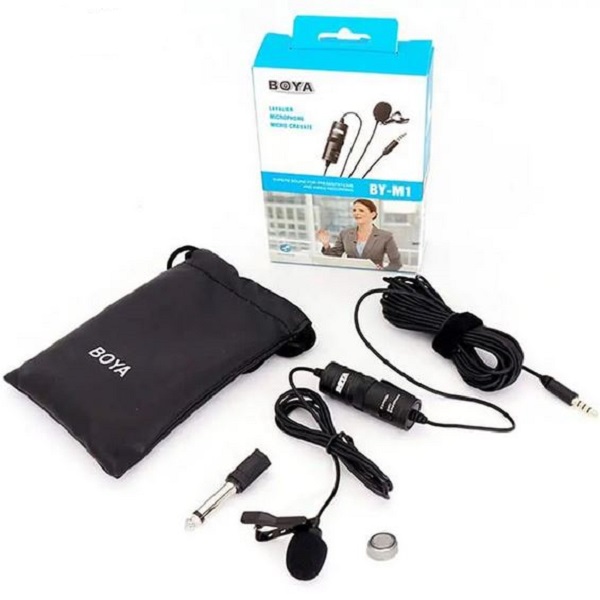

One of the most versatile omnidirectional lavalier microphones available is the Boya BY-M1. It provides a low signal-to-noise ratio of 74dB SPL and a broad frequency range of 65Hz to 18KHz with an electret condenser transducer. It has a 3.5mm 4-pole gold plug for convenient connection, and it includes a 1/4" adaptor, LR44 battery, foam windshield, and a lapel clip as helpful extras. This little, light microphone is made to produce high-quality sound, whether it is being used with a smartphone or other gadgets like DSLRs and camcorders.

BOYA M1 Microphone specifications

·         Brand: Boya

·         Model Number: Boya BY-M1

·         Transducer: Electret Condenser

·         Polar Pattern: Omnidirectional

·         Frequency Range: 65Hz to 18 KHz

·         Signal/Noise: 74dB SPL

·         Sensitivity: -30dB +/- 3dB (0dB=1V/Pa, 1 kHz)

·         Output Impedance: 1000 Ohms or less

·         Connector: 3.5mm (1/8”) 4-pole gold plug

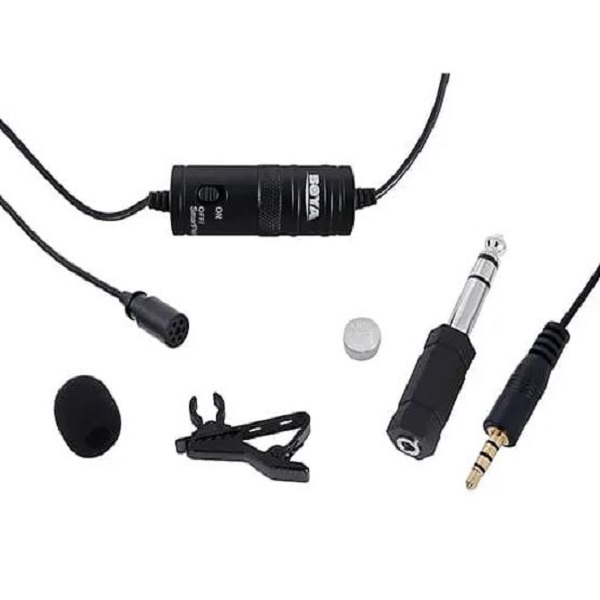

·         Accessories Included: Lapel clip, LR44 battery, foam windscreen, 1/4” adapter

·         Battery Type: LR44

·         Dimensions:

·         Microphone: 18.00mmH x 8.30mmW x 8.30mmD

·         Cable: 6.0m

·         Weight:

·         Microphone: 2.5g

·         Power Module: 18g

Using the Microphone

·         For Smartphones:

·         Turn off the microphone by sliding the ON/OFF switch up to OFF/Smartphone.

·         The power will be shut down.

·         For DSLR, Camcorders, Audio Recorders, PCs, etc.:

·         Turn on the microphone by sliding the ON/OFF switch up to ON.
