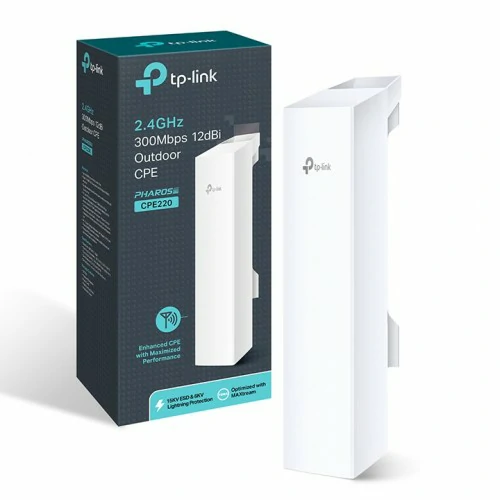

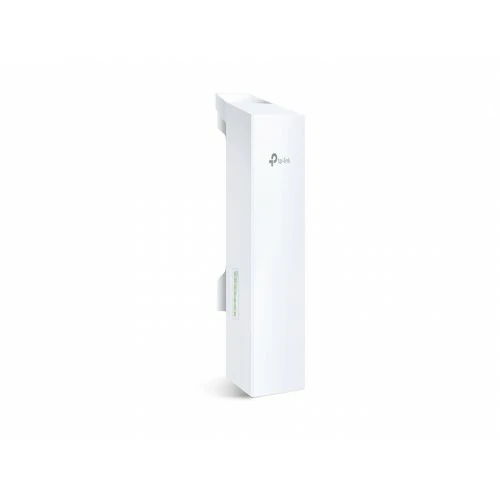

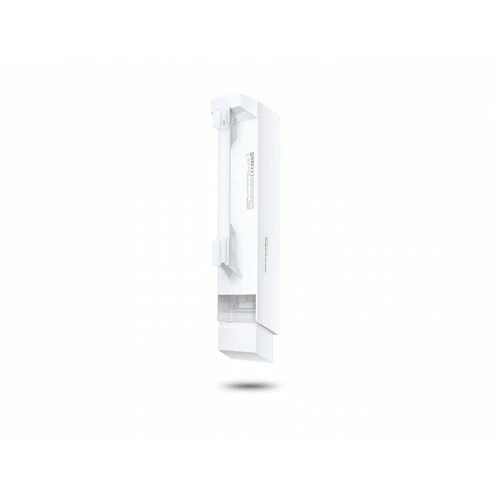

TP-Link CPE220 2.4GHz 300Mbps High Power Outdoor Wireless Access Point

TP-Link CPE220 Outdoor Wireless Access Point in Bangladesh

The TP-Link CPE220 is a high-growth outdoor wireless access point that provides solid and secure connectivity. Running on the 2.4GHz frequency with capacity up to 300Mbps, it gives optimal coverage for big outdoor zones. The high power layout of this device allows for the transmission of a signal over long distances, while it is perfect for areas that do not have any lines or large properties. The CPE220 presents a strong, all-weather, weatherproof box, which maintains its operation despite harsh conditions. So, one of the best advantages of TP-Link CPE220 is that it is easily installable and it can be configured. It will affect the wireless network by simply using a cost-effective way.

TP-Link CPE220 Outdoor Wireless Access Point Specifications

·        Antenna: Built-in 12dBi 2x2 Dual-polarized Directional Antenna

·        Beam Width: 60° (H-Plane) / 30° (E-Plane)

·        For detailed information, please refer to the datasheet.

·        Button: Remote Reset Button

·        CPU: Qualcomm Atheros 560MHz, MIPS 74Kc

·        Memory: 64MB DDR2 RAM, 8MB Flash

Temperature Range:

·        Operating: -40°C to 70°C (-40°F to 158°F)

·        Storage: -40°C to 70°C (-40°F to 158°F)

·        Operating Humidity: 10% to 90% non-condensing

·        Storage Humidity: 5% to 95% non-condensing

·        Dimensions: 85.8 × 43.9 × 31.9 mm

Power:

·        PoE Input: 1 × 10/100Mbps Shielded Ethernet Port (Passive PoE)

·        Input Voltage: 100-240VAC, 50/60Hz

·        Power Consumption: Max 10.5 Watts

Network:

·        Up to 300Mbps (40MHz, Dynamic)

·        Up to 144.4Mbps (20MHz, Dynamic)

·        Up to 72.2Mbps (10MHz, Dynamic)

·        Up to 36.1Mbps (5MHz, Dynamic)

·        Wireless Frequency: 2.4 to 2.483GHz

·        Wireless Standards: IEEE 802.11b/g/n (Pharos MAXtream disabled)

Ethernet Ports:

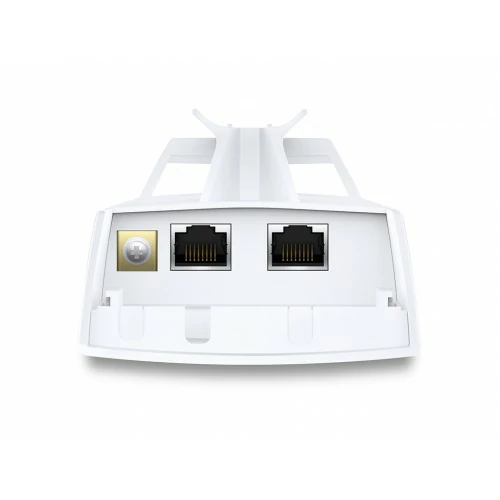

·        1 × 10/100Mbps Shielded Ethernet Port (LAN0, Passive PoE)

·        1 × 10/100Mbps Shielded Ethernet Port (LAN1)

Wireless Security:

·        WPA/WPA2

·        WPA-PSK/WPA2-PSK (AES/TKIP)

·        64/128/152-bit WEP Encryption

TP-Link CPE220 Outdoor Wireless Access Point Features

·        Discovery and Remote Management via Pharos Control application

·        HTTP/HTTPS Web-based Management

·        System Log

·        SNMP Agent (v2c)

·        Ping Watchdog

·        Dynamic DDNS

·        SSH Server

·        Optimized IGMP Snooping/Proxy for multicast applications

·        Hardware Watchdog

·        Warranty: 1 Year

TP-Link CPE220 Outdoor Wireless Access Point Benefits

1.      High-Power Transmission: With up to 300Mbps on the 2.4GHz frequency, it provides strong and stable wireless coverage over large outdoor areas.

2.      Extended Range: Designed for long-range wireless coverage, making it ideal for extending network access to outdoor spaces or across large properties.

3.      Durable Design: Built with weatherproof casing, it can withstand harsh environmental conditions, ensuring reliable performance in all weather.

4.      Flexible Deployment: Supports various mounting options, including pole and wall mounts, providing flexibility in installation.

5.      Advanced Wireless Standards: Complies with IEEE 802.11n standards, offering improved wireless speeds and range compared to older wireless standards.

6.      Long-Range Point-to-Point Connectivity: Ideal for creating a wireless bridge between two locations, making it perfect for connecting remote buildings or structures.

7.      Easy Configuration: User-friendly setup and management through a web interface or mobile app, making it easy for both beginners and advanced users to configure.

8.      Bandwidth Management: Supports features like Quality of Service (QoS) to prioritize network traffic, ensuring optimal performance for critical applications.

9.      Cost-Effective Solution: Provides a high-performance outdoor wireless solution at an affordable price, delivering excellent value for extending wireless coverage.
