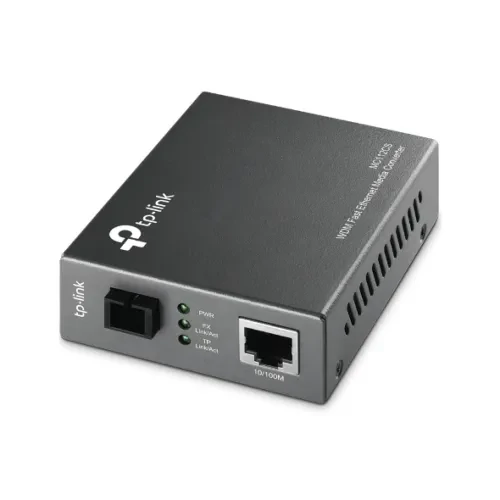

TP-Link MC112CS 10/100Mbps WDM Media Converter

TP-Link MC112CS 10/100Mbps WDM Media Converter Price in BD

The TP-Link MC112CS 10/100Mbps WDM Media Converter is a product that converts electrical Ethernet signals into optical signals, making smooth communication through fiber optics possible over longer distances. It can transfer data at a rate of 10/100Mbps and involves WDM (Wavelength Division Multiplexing) technology which gives it the capability to carry out both the functions of transmission and reception with one fiber strand. Designed for the extension of network connections up to 20 km, this device offers a stable and fast work. SC-type single-mode fiber is what it is compatible with, thus making it convenient and effective to improve your network infrastructure.

TP-Link MC112CS 10/100Mbps WDM Media Converter Specifications

Ports:

·        1 x 100M SC/UPC port

·        1 x 10/100M RJ45 port (Auto MDI/MDIX)

·        Network Standards: IEEE 802.3, IEEE 802.3u

Advanced Functions:

·        Utilizes WDM technology

·        Supports Half/Full-Duplex transfer mode for FX port

·        Minimizes link failure loss

·        Extends fiber distance up to 20km

Environmental Conditions:

·        Operating Temperature: 0℃ to 40℃ (32℉ to 104℉)

·        Storage Temperature: -40℃ to 70℃ (-40℉ to 158℉)

·        Operating Humidity: 10% to 90% non-condensing

·        Storage Humidity: 5% to 90% non-condensing

Hardware Features:

·        LED Indicators: PWR, Link/Act

·        Power Supply: External Power Adapter (9VDC/ 0.6A)

·        Max Power Consumption: 2.41W

·        Dimensions: 95 x 73 x 27 mm (3.7 x 2.9 x 1.1 in.)

·        Manufacturer Warranty: 1 Year

TP-Link MC112CS 10/100Mbps WDM Media Converter Benefits

1.      Cost-Effective Fiber Connection: The TP-Link MC112CS allows you to extend your network cost-effectively by converting Ethernet signals to fiber, eliminating the need for expensive infrastructure upgrades.

2.      Long-Distance Data Transmission: It supports single-mode fiber connections, allowing data transmission over distances up to 20km, making it ideal for long-range network setups.

3.      Compact and Easy Installation: Its compact design and simple plug-and-play functionality make it easy to install without the need for complex configurations or technical expertise.

4.      High Reliability and Stability: Designed to ensure reliable data transmission with low latency, the TP-Link MC112CS enhances the stability of your network, ensuring smooth performance.

5.      Auto MDI/MDI-X Support: The media converter eliminates the need for crossover cables by automatically detecting and adjusting for straight-through or crossover connections.

6.      LED Indicators for Monitoring: The converter comes with easy-to-read LED indicators that allow you to monitor the device’s status and troubleshoot network issues quickly.

7.      Low Power Consumption: It operates efficiently with minimal power usage, which helps in reducing operational costs and extending the lifespan of the device.
