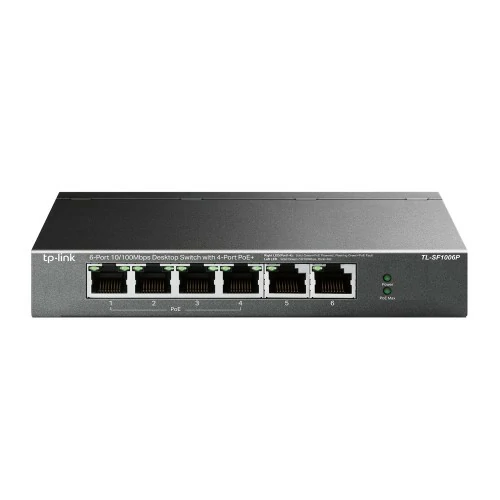

When discussing network switches, you cannot help but bring up the TP-Link TL-SF1006P, a little 6-port desktop change, that offers speeds of 10/100Mbps. This smart little device comes with 4 PoE+ ports thus eliminating the necessity of an extra power supply for the PoE-enabled devices such as IP cameras and access points. Ideal for small offices and home setups, with a total power budget of 67W, the PoE+ switch is a reliable choice. Its solid metal covering makes it impact-resistant and it can be used in various environments.
Network Standards:
· 10BASE-T: UTP category 3, 4, 5 cable (up to 100m)
· EIA/TIA-568: 100Ω STP (up to 100m)
· 100BASE-TX: UTP category 5, 5e cable (up to 100m)
· EIA/TIA-568: 100Ω STP (up to 100m)
Advanced Features:
· IEEE 802.3af/at compliant PD compatibility
· Extend Mode Button (Ports 1–4)
· Priority Mode Button (Ports 1–2)
· MAC Address Auto-Learning and Auto-Aging
· IEEE802.3x Flow Control for Full-Duplex mode
· Backpressure for Half-Duplex mode
· Transmission Method: Store-and-Forward
· Data Transmission Rate: 0.8928 Mpps
· MAC Address Table: 2K entries
Environment:
· Operating Temperature: 0–40 ℃ (32–104 ℉)
· Storage Temperature: -40–70 ℃ (-40–158 ℉)
· Operating Humidity: 10–90% RH, non-condensing
· Storage Humidity: 5–90% RH, non-condensing
Hardware Features:
· Interface: 6× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af/at PoE+)
· AUTO Negotiation and AUTO MDI/MDIX support
· Power Supply: External Power Adapter (Output: 53.5 V DC / 1.31 A)
Max Power Consumption:
· 1.9 W (220 V / 50 Hz, no PD connected)
· 74 W (220 V / 50 Hz, with 67 W PD connected)
· Dimensions (L x W x H): 158 x 101 x 25 mm (6.2 x 4.0 x 1.0 in)
· Warranty: 1 Year Manufacturer Warranty
1. Power Over Ethernet (PoE+) Support: The switch has 4 PoE+ ports, allowing you to power devices like IP cameras, VoIP phones, and wireless access points directly through the Ethernet cable, eliminating the need for separate power supplies.
2. Cost-Effective Networking Solution: Combining data and power in one cable reduces installation costs and simplifies the setup process, making it an economical choice for small businesses and home offices.
3. Compact and Space-Saving Design: The desktop form factor of the switch makes it ideal for environments with limited space, fitting easily on desks or in network closets.
4. Enhanced Network Flexibility: With 6 ports available, including 4 PoE+ ports, you can easily expand your network and connect multiple devices without needing additional hardware.
5. Overload Protection: The switch includes PoE overload protection, which automatically disables lower-priority ports to protect the switch and connected devices in the event of power overloads.
The latest price of TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE+ is ৳3,149 in Bangladesh. You can purchase the TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE+ in Bangladesh at the best price from our website or any of our stores.
