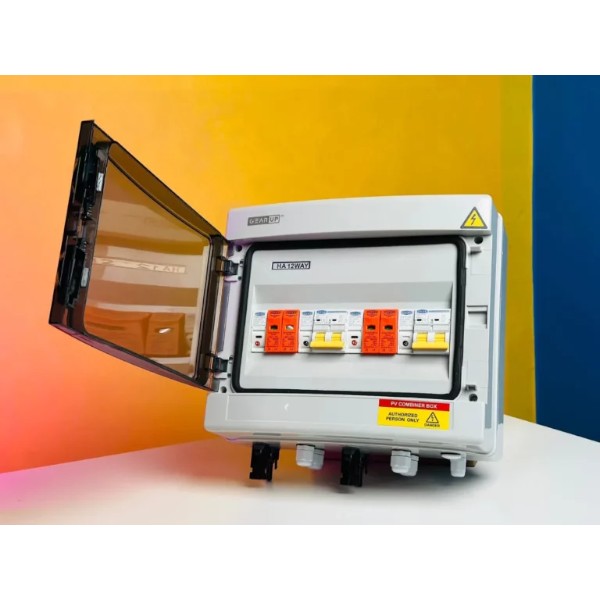

GearUP 12-Way DC PV Combiner Box with MCB, Fuse & SPD (IP65 Waterproof)

GearUP 12-Way DC PV Combiner Box with MCB, Fuse & SPD (IP65 Waterproof) – Price in Bangladesh

Enjoy the highest standards of safety, efficiency, and longevity in your solar power system with the one and only GearUP 12-Way 2 Strings DC Solar PV Combiner Box.This high-quality combiner box, which has been specially made for residential, commercial, and off-grid solar installations, allows you to combine and control up to 12 solar panels in two separate sets.With the installation of MCB, DC fuses, and a Type II SPD, the device operates at an absolute level of protection against the overcurrent, short circuits, and voltage surges.With a design that keeps it waterproof, dustproof, and UV resistant, among others, the product which is made with an IP65 waterproof enclosure is truly the ultimate solution to prolong the life of your solar system.

12-Way Solar Combiner Box with MCB, Fuse & SPD Specifications

·         Input Strings: 2 strings (6 panels per string)

·         Output: 2 outputs (dual MPPT compatible)

·         Voltage Rating: 600V DC

·         Current Per String: 30A (fuse dependent)

·         MCB Rating: 63A

·         SPD Type: Type II DC SPD

·         Enclosure Rating: IP65 waterproof, UV-resistant, outdoor-rated

·         Mounting Options: Wall mount / Pole mount

·         Cable Glands: UV-resistant PG glands

IP65 Waterproof 12-Way PV Combiner Box Key Features

·         12-Way Design: Allows 12 solar modules to be connected as 2 separate strings (6 panels each) leading to better control of the system.

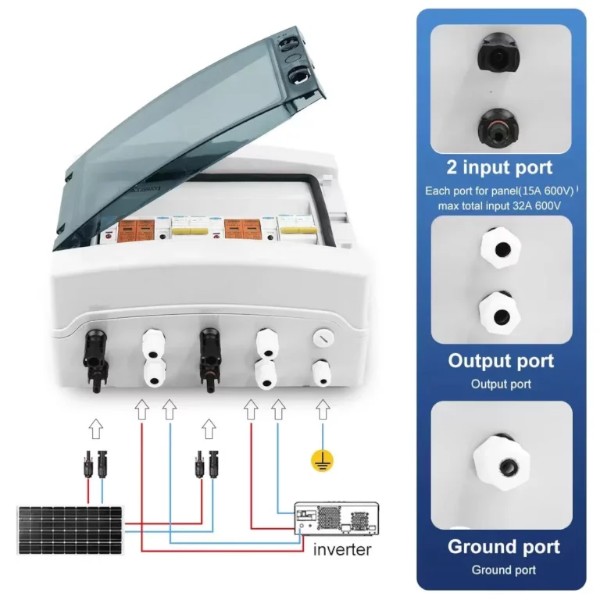

·         Dual Input and Output: 2 strings in and 2 strings out, therefore, it is also perfect for dual MPPT inverter compatibility.

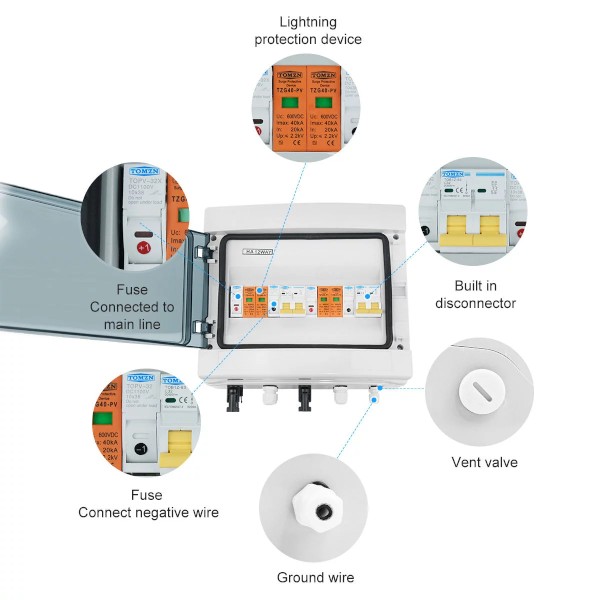

·         High-End Protection: The embedded MCB, DC fuses, and Type II SPD play a role in the safety of the system from the scenarios of overcurrent, shorts, and surges.

·         Long Lasting IP65 Enclosure: Its waterproof, dustproof, UV resistant and flame-retardant ABS/polycarbonate housing ensures that it is very strong for outdoor use.

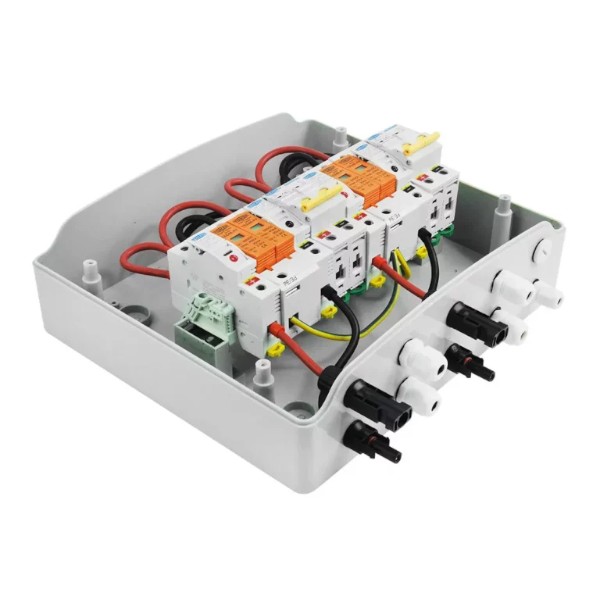

·         Convenient Installation: It is already pre-wired with labeled terminals, UV-protected cable glands, and an internal DIN rail which makes wiring look neat.

·         Improved Safety: Provides fast isolation and disconnection, thus reducing the possibility of arc faults and failure.

·         Broad Compatibility: Can be used with solar inverter brands such as Growatt, Deye, SMA, Solis, and numerous others.

Additional Benefits

·         Safe and efficient solar panel power management

·         Protects solar equipment from overcurrent, short circuits, and surges

·         System reliability and operational lifespan are extended

·         Pre-assembled for a quicker and easier installation

·         Strong weatherproof design for all environments

Packaging Contents

·         1 x GearUP 12-Way 2 Strings DC PV Combiner Box

·         Pre-installed MCB, DC fuses, and SPD

·         UV-resistant cable glands

·         User manual and installation guide

Why Choose the GearUP 12-Way DC PV Combiner Box?

This combiner box is the solution that best meets the requirements of safety, flexibility, and durability in contemporary solar installations. The GearUP 12-Way Combiner Box is the perfect answer to your problem whether you are installing a residential rooftop system, a small commercial project, or an off-grid hybrid system. It gives you the protection against electrical hazards, at the same time, it assures the reliable DC power distribution.
