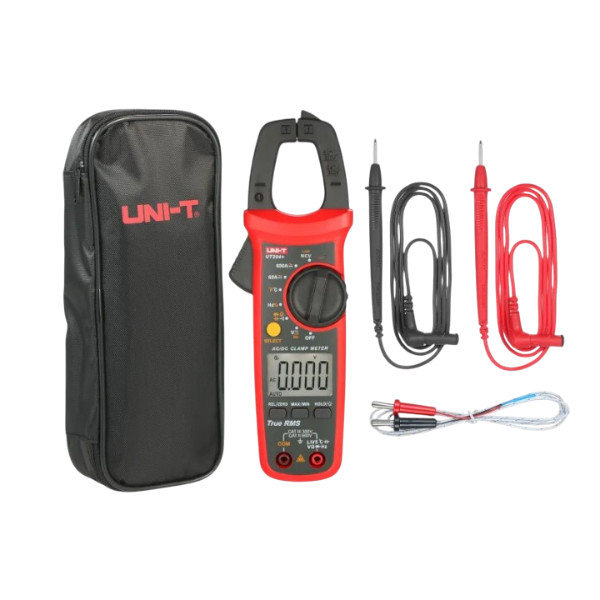

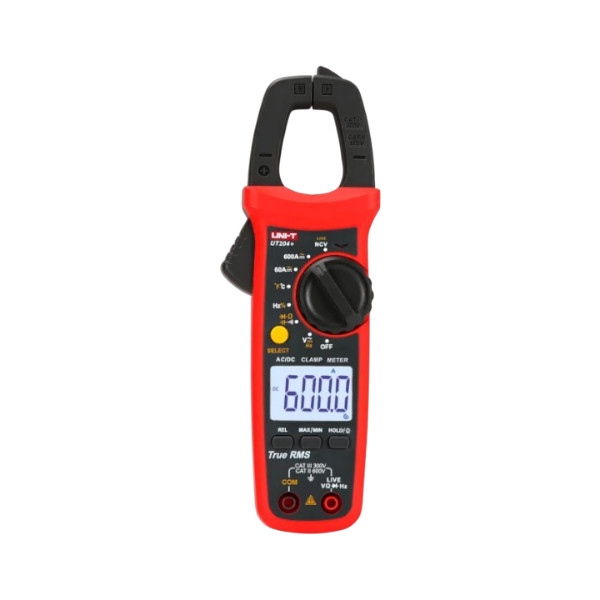

UNI-T​‍​‌‍​‍‌​‍​‌‍​‍‌ UT204+ True RMS Digital Clamp Meter – Professional Accuracy and Safety

The UNI-T UT204+ Digital Clamp Meter is a sturdy, professional-grade measuring gadget for electricians, technicians, and engineers who require accuracy, safety, and a fast response. Featuring True RMS capability, this clamp meter provides highly exact measurements even on non-linear loads, thus it is suitable for both residential and industrial electrical settings. Its rugged construction, high-tech measuring facilities, and comprehensible layout make it an ideal tool for everyday diagnosis and repair.

UNI-T​‍​‌‍​‍‌​‍​‌‍​‍‌ UT204+ True RMS Digital Clamp Meter Specifications

·         Voltage Range: up to 600V AC/DC

·         Current Range: up to 600A AC/DC

·         Resistance: up to 60MΩ

·         Capacitance: up to 60mF

·         Frequency: up to 10MHz

·         Temperature Range: -40°C to 1000°C

·         Display Count: 6000 counts

·         Clamp Jaw Opening: 28mm

·         Safety Rating: CAT III 300V / CAT II 600V

·         Power Supply: 2 x AAA batteries

·         Dimensions: 215mm x 63mm x 36mm

·         Weight: Approx. 280g

UNI-T​‍​‌‍​‍‌​‍​‌‍​‍‌ UT204+ True RMS Digital Clamp Meter Key Features

·         True RMS Measurement to get correct readings on challenging and non-linear electrical loads

·         Large Measurement Range allows current measurement up to 600A AC/DC and voltage up to 600V AC/DC

·         NCV (Non-Contact Voltage) Detection instantly and safely detects of live wires

·         Temperature Measurement the optional thermocouple makes the meter even more versatile

·         Frequency & Duty Cycle features perfect the meter for the electrical technician of the new generation

·         Auto Range & Data Hold feature makes the meter user friendly and can be handled with one hand only

·         MAX/MIN Recording & ZERO Reset continuously monitor measurements and correct the offset errors

·         Large Backlit LCD Display a feature very useful when working in dark or dimly lit areas

·         High Safety Rating certified in accordance with CAT III 300V / CAT II 600V standards

·         Rugged Clamp Design with 28mm jaw opening for comfortable conductor access

How It Works & Additional Functionality

·         Turn the selector switch to the desired function

·         Since current measurement can be done without direct contact, clamping around the conductor ensures safety first

·         Test for voltage, resistance, frequency, and continuity with the help of test leads

·         Turn on NCV to find live wiring even if you don't have any direct contact with the circuit

·         By activating HOLD, MAX/MIN, and ZERO you are able to capture the readings or reset the values

·         Plug in the thermocouple, then use the temperature setting to get thermographic measures

Why Choose UNI-T UT204+?

Thanks to its True RMS precision, rigorous safety specifications, and multi-functionality, the UNI-T UT204+ can be considered an outstanding product. If you are dealing with electrical installations, upkeep, or repairs, this clamp meter is a perfect tool for you to get consistent performance and reliable results every time. Considering its comfortable grip and tough quality, you can rely on it for a long time, so it is a wise decision for professionals and advanced DIYers ​‍​‌‍​‍‌​‍​‌‍​‍‌too.
