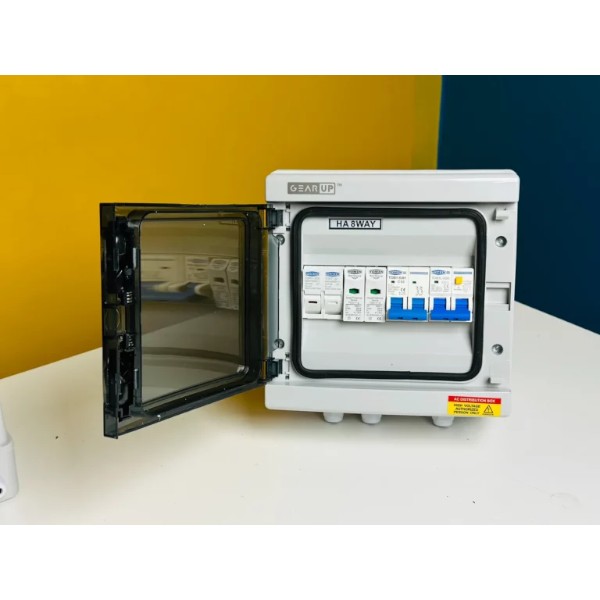

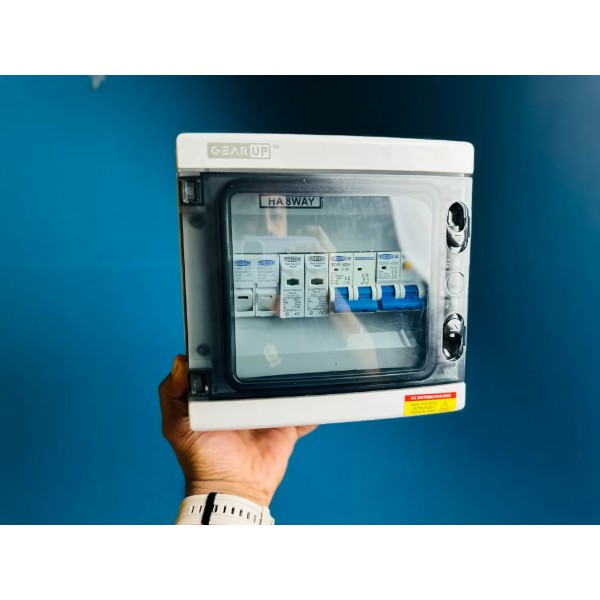

GearUP AC Distribution Box 8 Way (1 in 1 out)

GearUP AC Distribution Box 8 Way (1 in 1 out) – Price in Bangladesh

Get the GearUP AC Distribution Box 8 Way (1 in 1 out) to manage and control the power flow that feeds your home or office. This product is designed for an AC 400V system with a 63A unit and the distribution box is of high quality as it is made of dark chromium-plated steel, which ensures long service life.

This distribution box is ideal for residential, commercial, and solar, as it comes with the original Tomzn components that guarantee good performance and protection.

GearUP 8 Way AC Distribution Box (1 Input 1 Output) Specifications

·         Brand: GearUP

·         Rated Current: 63A

·         Voltage: AC 400V

·         Configuration: 8 Way (1 in 1 out)

·         Dimensions: 20.5 cm × 20 cm

Internal Components

·         TOQ1-32K (Tomzn) – Disconnector Switch, 32A, 500V AC, 2 Pole

·         TOQ1-32 (Tomzn) – Disconnector Switch, 32A, 500V AC, 2 Pole

·         TOV1-C (Tomzn) – Surge Protective Device, 385V, 40kA Imax, Type 2 SPD (2 units)

·         TOB1-63H C63 (Tomzn) – Miniature Circuit Breaker, 63A, C Curve, 400/230V AC

·         TOB1L-63H C63 (Tomzn) – RCCB/RCBO with leakage current protection, 63A, 30mA sensitivity (2 units)

·         Additional Blue Switch MCBs – 6A–32A (approx.), for individual circuit protection

8 Way Power Distribution Strip Box Key Features

·         High Power Capacity: The rated current of the product is 63A supporting this way it can deliver the power flow steadily and reliably.

·         Durable Construction: Manufactured with the best quality materials to keep the safety and the performance function of the product regular during its lifetime.

·         8-Way Output: By distributing electricity from a single input source to multiple circuits, it ensures the efficient use of the given power.

·         Advanced Safety: The technology in it protects the device from overload, short circuit, surges, as well as leakage currents.

·         Wide Voltage Support: The product that can be used in homes, businesses and solar power systems is of AC 400V design.

·         Premium Components: The product is equipped with authentic Tomzn products such as isolator switches, SPDs, MCBs, and RCCBs which altogether ensure the maximum efficiency and security of the product.

Additional Functionality

·         DC Fuse Holders (2 units): Firstly, fuse holders disconnect the load in case it happens to be a short circuit or an overload and thus protect DC circuits.

·         Surge Protection Devices (2 units): Defend against electrical discharges and voltage spikes resulting in system damage.

·         Miniature Circuit Breaker (1 unit): A unit that is automatically disconnected during the occurrence of overload or short circuit.

·         RCCB/RCBO Units (2 units): Overload/short circuit and leakage current prevention, thus maximum safety, is what is targeted by the dual protection given by the RCCB/RCBO units.

Why to Choose GearUP AC Distribution Box 8 Way?

This distribution box is designed with a focus on the highest level of safety, long-lasting functionality, and clean power management. Even for applications such as home wiring, office installation, and solar setup, it does not fail to bring calming effects with the use of top-of-the-line Tomzn parts and the advanced electrical protection feature.
