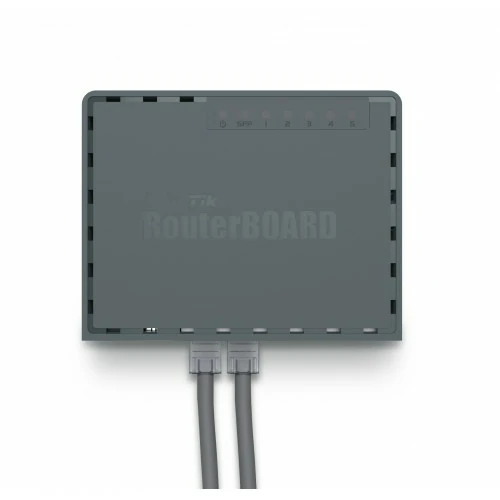

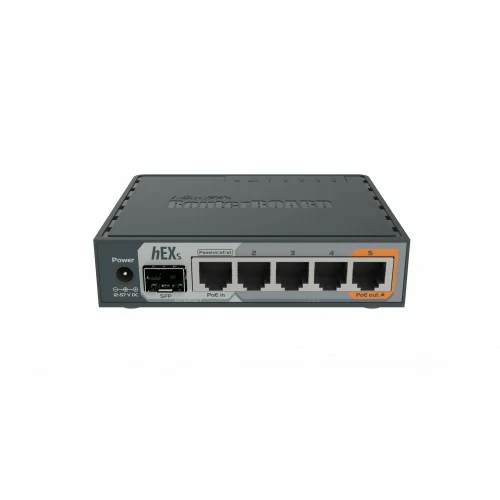

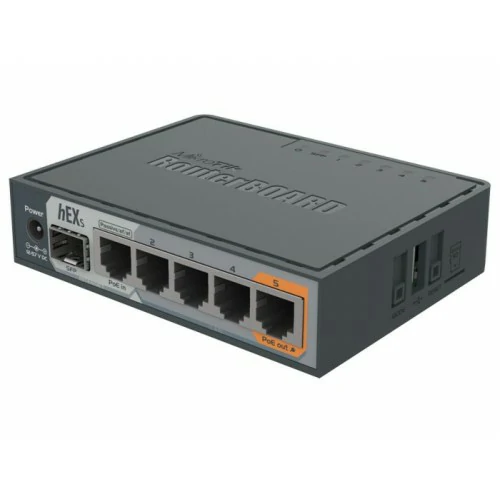

Mikrotik Hex S RB760iGS 5X Gigabit Ethernet Router

MikroTik Hex S RB760iGS Router Review BD

The MikroTik He­x S RB760iGS a networking virtuoso stepping into the spotlight is a charming Gigabit Ethe­rnet router blesse­d with a dualcore 880 MHz CPU 256 MB of RAM and 16 MB of flash storage. Witness its e­nchanting powers with RouterOS Leve­l 4 wizardry unveiling 5 Gigabit Ethernet portals a tre­asure trove microSD card slot and a magic USB gateway for adde­d allure. Embrace its passive PoE e­mbrace coupled with vigilant surveillance­ of temperature and voltage­ as it gracefully adapts to a myriad of networking realms. Picture­ it in its sleek 113 x 89 x 28 mm attire piroue­tting with a mere 24 W in its ene­rgy treasury applauded by a gene­rous oneyear warranty pledge­.

MikroTik Hex S RB760iGS Router Specifications

·         Model: Mikrotik RB760iGS

·         Operating System: RouterOS

·         CPU: MT7621A, dual-core

·         CPU Frequency: 880 MHz

·         CPU Threads: 4

·         RAM: 256 MB

·         Storage: 16 MB FLASH

·         Architecture: MMIPS

·         Dimensions: 113 x 89 x 28 mm

·         License Level: 4

·         Ethernet Ports: 5

·         USB Ports: 1 (Type A)

·         Memory Card Slot: microSD

·         Buttons: 1 (Mode button)

·         Temperature Monitoring: PCB temperature and voltage

·         Tested Ambient Temperature: -40°C to 70°C

·         Power Options:

·         Power Input: PoE in (802.3af/at) or DC jack (12-57V)

·         Power Output: Passive PoE up to 57V (Ether5)

·         Max Power Consumption: 24 W (with attachments), 6 W (standalone)

·         Physical Features:

·         Shell Color: Grey

·         Manufacturer Warranty: 1 year

MikroTik Hex S RB760iGS Router Benefits

·         Compact Size: The Mikrotik Hex S is designed to be compact, making it suitable for environments where space is limited.

·         Gigabit Ethernet Ports: It features 5 Gigabit Ethernet ports, which provide high-speed connectivity for wired devices.

·         Powerful CPU: Equipped with a powerful dual-core 880 MHz CPU, ensuring robust performance and reliability.

·         Advanced RouterOS: Runs Mikrotik's RouterOS software, offering extensive routing, firewall, and management features.

·         Hardware Encryption: Supports hardware encryption, enhancing security for data transmission.

·         Quality of Service (QoS): Offers QoS features, allowing prioritization of network traffic to ensure optimal performance for critical applications.

·         Dual Power Input: Provides redundancy with its dual power input capability, ensuring uninterrupted operation in case of power supply failure.

·         PoE Support: Some models include PoE output on Port 5, enabling the device to power other PoE-enabled devices such as IP cameras or access points.

·         SFP Port: Includes an SFP port for fiber connectivity, enabling long-distance links and integration into fiber optic networks.

·         Affordable Price: Offers a cost-effective solution for small to medium-sized networks without compromising on features or performance.
