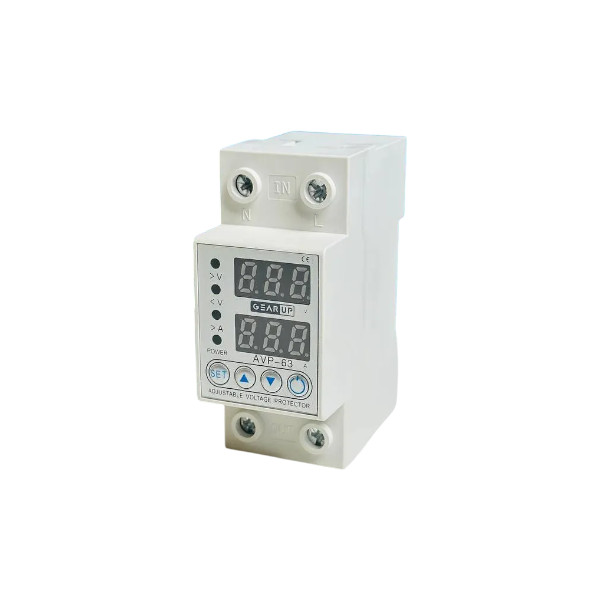

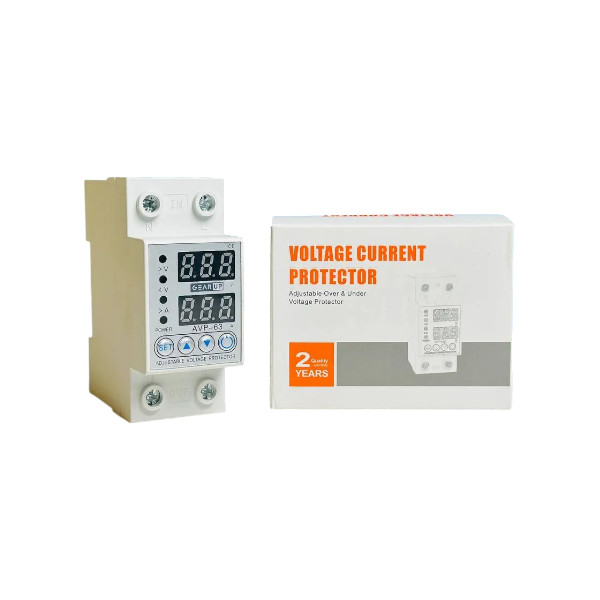

GearUP AVP-63 Automatic Voltage Protector-220V

GearUP AVP-63 Automatic Voltage Protector-220V: Protect Your Electrical Devices with Advanced Features

Ensure your sensitive electrical gadgets remain safe and operational with the GearUP AVP-63 Automatic Voltage Protector-220V. This voltage protector is fully compatible with both AC and DC applications and continues to be highly-efficient in less energy consumption. Meanwhile, this energy-saving feature comes with a smart switchable outlet that can be remotely controlled to turn on or off; saving electricity even more. This top-of-the-line voltage protector is specifically designed to provide the most suitable and cost-effective power solutions for both high-end and personal computers. The AVP-63 is constructed with real-time protection, customizable settings, and a number of physical protection means; making it suitable for your power system security and monitoring.

GearUP AVP-63 Automatic Voltage Protector-220V Specifications

·         Power Supply            AC: 320V / DC: 80–300V

·         Frequency  50/60Hz (AC only)

·         Voltage Range           AC: 80–300V (setting), 80–210V (operating) / DC: 130–300V (setting), 80–210V (operating)

·         Max Current              40A/63A (configurable)

·         Accuracy      Voltage: <1%

·         Response Time         Over-voltage: 0.5s (no delay); adjustable trip delays (P-7, P-10)

·         Environmental          -25°C to +50°C, ≤2000m altitude, ≤50% humidity (at 40°C)

·         Physical Dimensions               512 × 960mm

GearUP AVP-63 Automatic Voltage Protector-220V Key Features

·         Over-voltage Protection: Halts the power when the voltage exceeds a certain value set point, protecting the sensitive devices from the damage (P-3).

·         Under-voltage Protection: Interrupts the load when the voltage goes lower than the set limit, hence ensuring safe operations of the system (P-5).

·         Over-current Protection: Activates if the current is greater than the limit set by the user (P-9) and has a variable time span of activation (P-10).

·         Automatic Recovery: The system will switch the power back on as soon as the issue is fixed, at the time that is most convenient for you (P-15).

·         Fast Power-Down: It provides a sudden and emergency break for the safe operation of the system (which can be through P-14).

·         Real-time Monitoring: It will show the exact moments of the flow of each current and each voltage (AC/DC) for better system performance tracking. (AC only).

·         Fault Indicators: They are the indicators of either an over-voltage, under-voltage, or over-current situation, plus a power indicator that shows normal operation.

·         Programmable Settings: The end-user can adjust their over-voltage, under-voltage, current levels, recovery times, and calibration to meet their specific needs (P-1 to P-17).

·         Password Protection: Only the authorized personnel can make the changes because of the password-protected feature.

Additional Functionality:

·         Calibration Options: Adjust voltage (±10%) via P-8, current (±10%) via P-12, and frequency (±2.5%) for precise calibration and system optimization.

·         Event Logging: Track overcurrent fault history with built-in fault count logging (P-11).

·         Energy Saving Mode: Activate P-16 to reduce idle power consumption for energy efficiency.

·         Altitude Consideration: Performance may degrade above 2000m, so make adjustments accordingly for optimal operation.

How to Set Up:

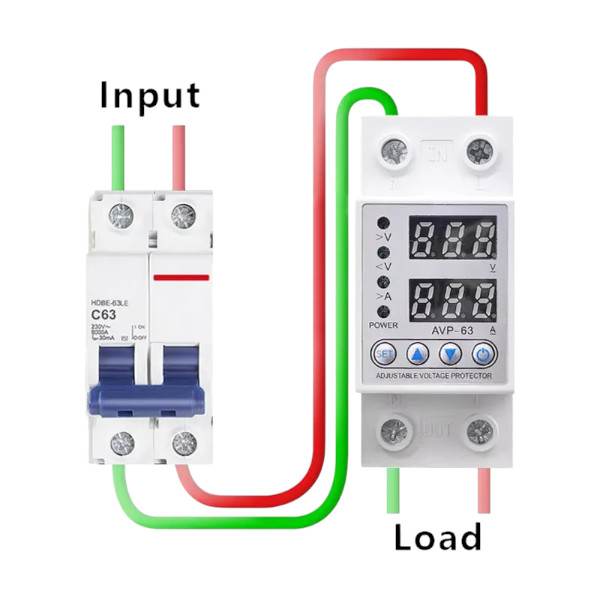

Power Connection: Wire the terminals (N-L) to an AC/DC source within rated limits.

Menu Navigation: Use the front-panel buttons to adjust parameters (P-1 to P-17) for personalized settings.

Critical Settings: Adjust key parameters like voltage/current limits (P-3/P-5), maximum current (P-9), and enable/disable auto-recovery (P-15) according to your system's requirements.

Why Choose GearUP AVP-63?

With its advanced protection features, customizable settings, and easy-to-use interface, the GearUP AVP-63 Automatic Voltage Protector-220V offers unparalleled security for your electrical systems. Whether you are protecting home appliances, industrial machinery, or sensitive electronics, this reliable voltage protector ensures your devices are safe from power-related issues.
