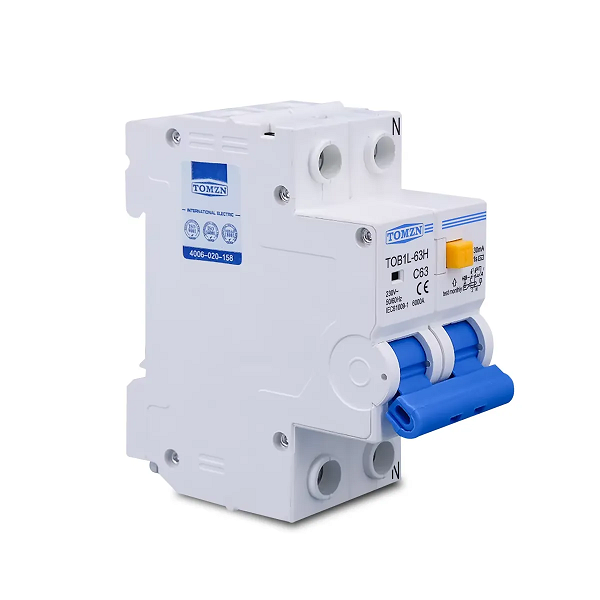

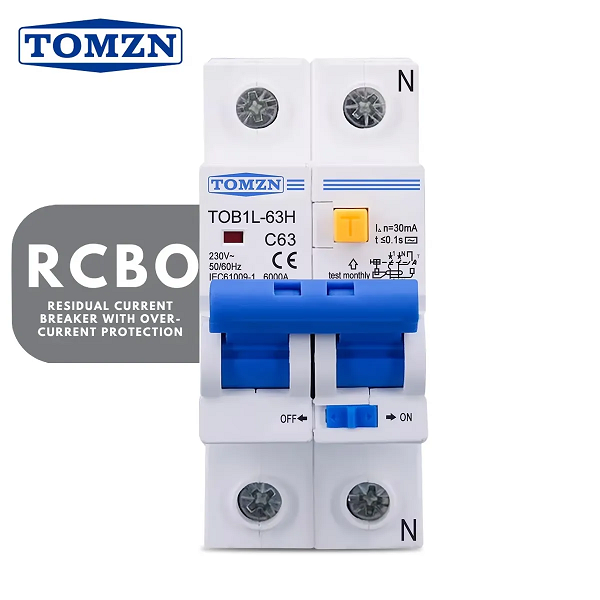

TOMZN RCBO TOB1L-63H 2P 63A 230V AC 50Hz/60Hz Residual Current Circuit breaker with over current and Leakage protection RCBO

TOMZN RCBO TOB1L-63H 2P 63A – Reliable Electrical Safety for Homes & Businesses

The ultimate goal here is to have an electrical system in your house or office which is safe and can be relied on. The TOMZN RCBO TOB1L-63H 2P 63A device is the ideal choice that you can take for a starter in the family or at work. It is a compact protection device that has two essential safety features (MCB and RCD) in just one unit. With the capacity to protect the current state of the art electrical systems manner, it is very versatile and, thereby, usable in homes and workplaces and even in industries where very less light is needed.

TOMZN RCBO TOB1L-63H 2P 63A Specifications

·         Specification              Description

·         Model           TOB1L-63H

·         Brand            TOMZN

·         Poles             2P (Phase + Neutral)

·         Rated Current (In)   63A

·         Rated Voltage (Ue) 230V AC

·         Frequency  50Hz / 60Hz

·         Residual Operating Current 30mA (typical, adjustable in some models)

·         Breaking Capacity    6kA

·         Tripping Characteristic           Type C (suitable for moderate inrush currents)

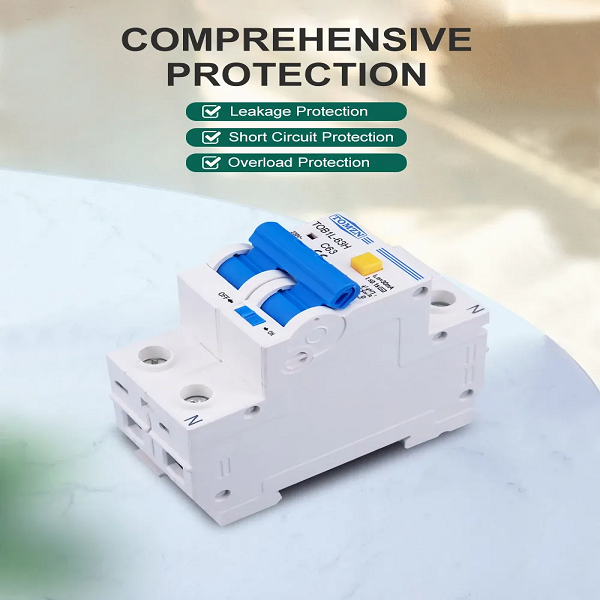

·         Protection   Overcurrent, Short Circuit, Earth Leakage

·         Mounting    35mm DIN Rail (Standard)

·         Cut-off         Simultaneously cuts Live and Neutral lines

TOMZN RCBO TOB1L-63H 2P 63A Features

·         RCBO: Residual Current Breaker with Overcurrent (RCBO) is the device that has all the features of Miniature Circuit Breaker (MCB) and it is also combined with the functionality of Residual Current Device (RCD) into one compact unit.

·         Double-Pole Cut-off (L+N): During fault conditions, it automatically opens both live and neutral lines to enhance safety.

·         High Sensitivity: This device can find leakage currents from 30mA to170 mA and thus it assures full safety of the person in a hazardous situation.

·         Quick Trip Response: It reacts promptly to the occurrences of faults like overloads or earth deterior­ation, thus decreasing the risks.

·         Fire & Shock Protection: It has safety shielding facilities that not only minimize the likelihood of an electric fire but also help avoid electrocution.

·         DIN Rail Mounting: The device is designed to be easily fitted into the distribution boards using a 35mm DIN Standard Rail.

·         Durable & Compact Design: The firm and easily set up a smaller unit that is appropriate to modern electrical panels.

Applications:

·         Residential circuit protection

·         Dedicated lines for air conditioners and geysers

·         AC output protection for solar inverters

·         Small offices and commercial spaces

·         Shops and light industrial units

Installation Notes:

·         Always ensure proper wiring and grounding before installation.

·         Select the correct current rating based on your load requirements.

·         For safety, installation should be done by a certified electrician.

Why Choose the TOMZN TOB1L-63H?

This RCBO offers an unmatched blend of safety, reliability, and convenience. Whether you're safeguarding your home, office, or small business, this unit is designed to meet the highest standards of protection and efficiency.
